Embedded 2.4G/5G Systems, For World-wide Use, Vertical Polarization.

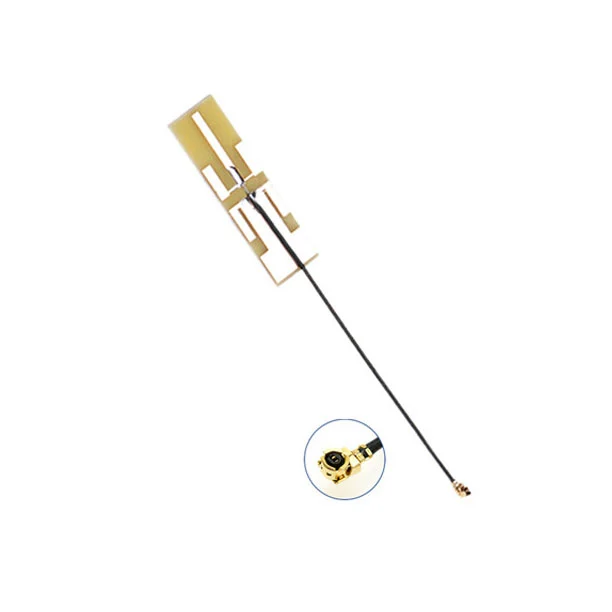

This is Dual Band 2.5/3 dBi PCB/Sticker Antenna having a frequency of 2400-2483MHz & 5150-5800MHz.
The biggest advantage to dual-band antennas is their ability to provide a strong, stable wireless connection is often difficult to reach locations.
For this reason, they are often used in devices such as cellular or dual-band wireless access points.
Embedded 2.4G/5G Systems, For World-wide Use, Vertical Polarization.
Omni-directional gain across all bands ensures constant reception and transmission.
Cable lengths and connectors are fully customizable.
For good efficiency performance the shortest cable length should however not be less than 100mm.
It is suitable for clients that appreciate highest performance with lower price.
| Electrical | |
| Frequency Range | 2400-2500/5150-5800MHz |
| Gain | 2.5/3dBi |
| V.S.W.R | ≤2.0 |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | IPEX |
| Cable Type | RF 1.13 |
| Cable Length | 100mm |
| Antenna Radome Material | FR4 |
| Mechanical | |
| Dimensions | 48x14x1.8mm |
| Weight | 0.1g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
This is internal Flexible Printed Circuit Dual Band WiFi antennas that cover the entire WLAN bands of 2.4-2.5 GHz and 4.9–5.85 GHz.
With this small form factor and efficiency over 50%, this is the perfect internal options for WiFi applications.
Vertical polarized, it is suitable for many of today's machine to machine and communication applications such asmesh networking applications.
