Point to point systems, point to multi-point and wireless bridges and designed for use in the 2.4GHz ISM band as well as IEEE 802.11b/g/n wireless LAN systems Wide Band Operation, Vertically or Horizontally Polarized, Extremely Rugged for Extreme Environment. Antenna is supplied together with the bracket, which is possible to set easily in both directions.

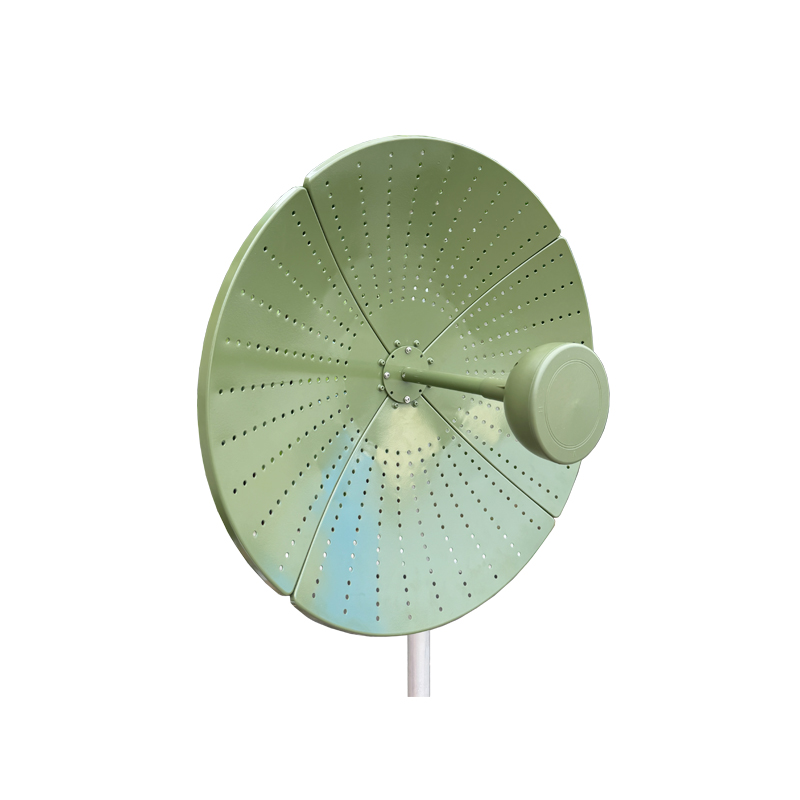

The Parabolic Dish Antenna systems offered by Wireless are constructed of an aluminum alloy dish with powder coat paint finish for excellent mechanical. Perforated holes in the dish helps minimize wind loading. The parabolic dish is rugged and weatherproof, with the heavy duty and engineered mounting kits, just make the antenna ideal for all weather operation and any harsh environment.
| Electrical | |
| Frequency Range | 2300-2700MHz |
| F/B Ratio | ≥26dB |
| Gain | 2x27dBi |
| V.S.W.R | ≤2.5 |
| Radiation | Direction |
| Horizontal Beam width | 9° |
| Vertical Beam width | 9° |
| Polarization | Vertical and Horizontal |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |
| Connector | 2xN Female |
| Cable Type | LMR195 |
| Cable Length | 100mm |
| Antenna Radome Material | Aluminium alloy |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Dimensions | Φ900mm |
| Weight | 7.5KG |
| Operating Temperature | -40℃ to+70℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
The Wifi grid dishes are made from casted aluminium and combine a high stability and low wind load for a long endurance of the antennas.
The dish is coated in a light gray UV-inhibited polymer for durability and aesthetics.
Drain holes are provided on the radome cover to help prevent moisture build-up inside the dish antenna.
