Grid parabolic antenna is designed for the spread spectrum system, operates in the 2.4-2.5 GHz and provides 24dBi directional Parabolic Grid antennas operation.
This antenna features high gain, long coverage, lightweight, compact structure and excellent wind-resistance. It is used for outdoor and the range is up to 5-20 km 2.4 GHz antenna, which focuses the signal and reflects the power off of the dish, creating very high power in a highly directional beamwidth. You can think of the radio signal beam of a high gain parabolic dish/ grid antenna as shining a high power flashlight directly at your target.
We offers feedhorns for your parabolic grids. These kits consists of the feedhorn and mounting hardware. This is the feedhorn for our AC-D24G24 antenna.
| Electrical | |
| Frequency Range | 2400-2483MHz |
| Band width | 83MHz |
| F/B Ratio | ≥25dB |
| Gain | 24dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Direction |
| Horizontal Beam width | 10° |
| Vertical Beam width | 14° |
| Polarization | Vertical or Horizontal |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |
| Connector | N Female |
| Cable Type | LMR240 |
| Cable Length | 30cm |
| Mechanical | |
| Antenna Dimension | 85x390mm |
| Weight | 360 |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |

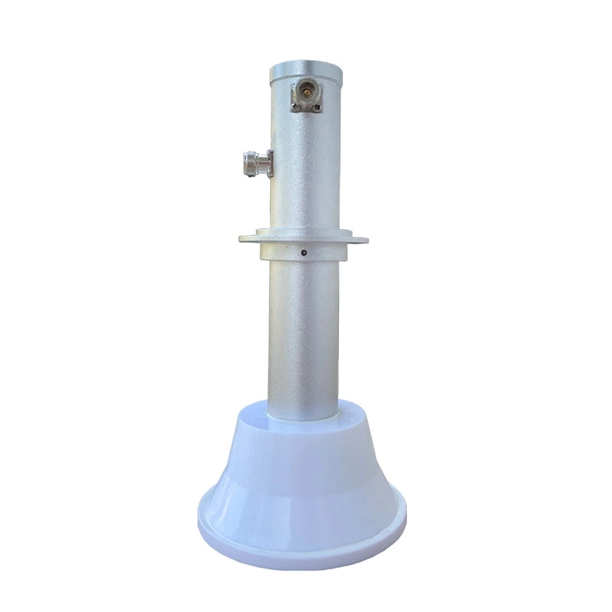

Asian creation now offers replacement feedhorns for the parabolic grids.
This kits consists of only the feedhorn made of aluminum alloy.
This is the replacement feedhorn for our AC-D24G24 antenna.
