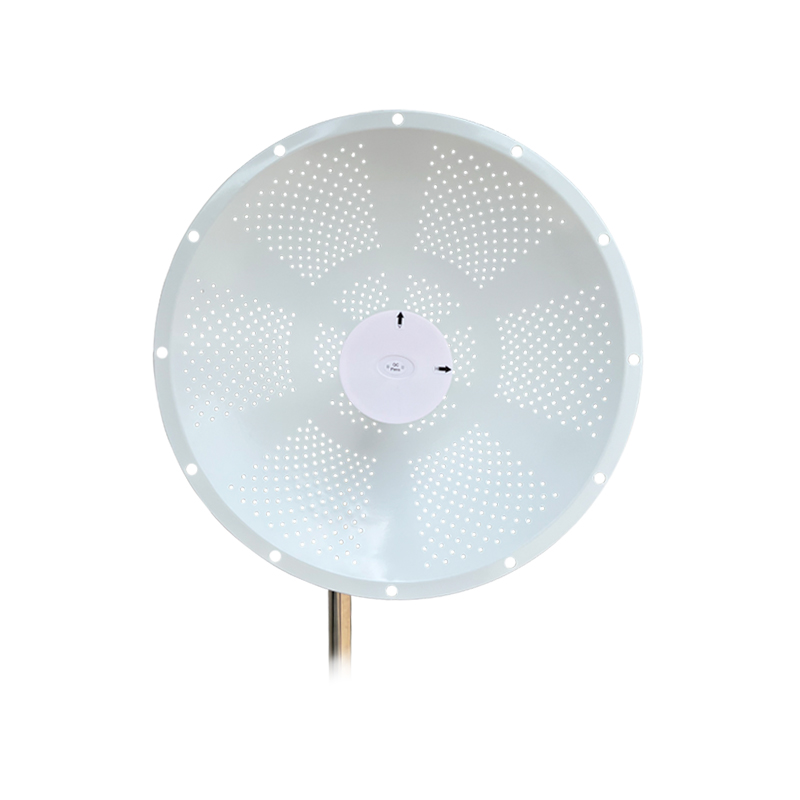

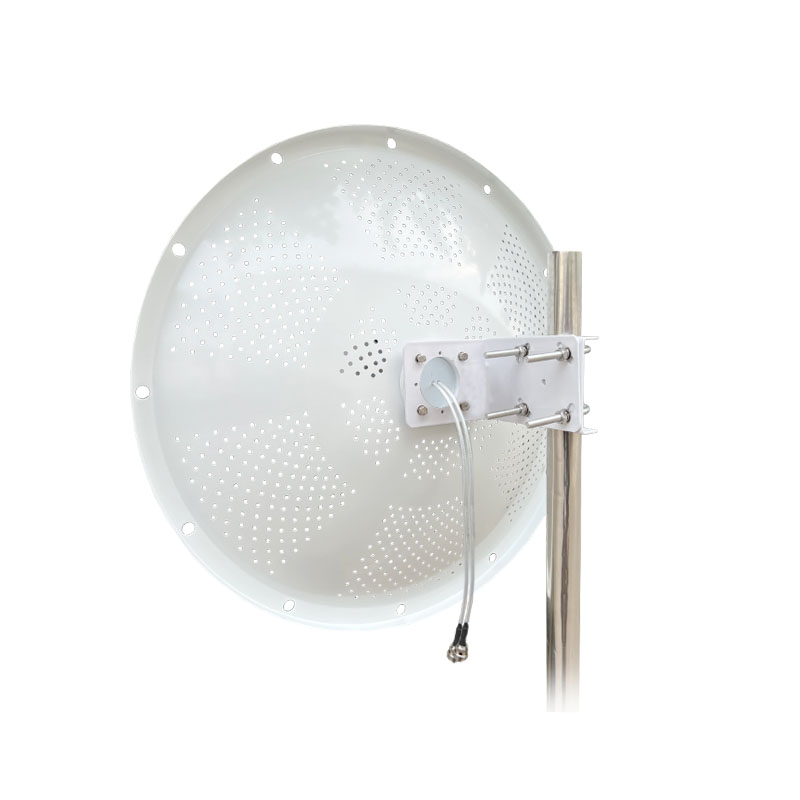

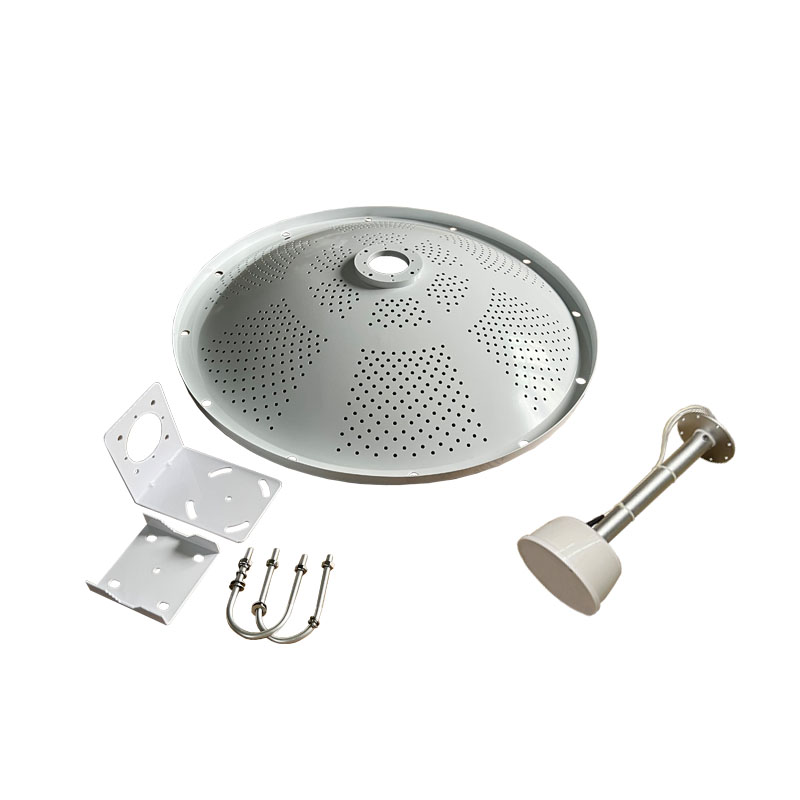

Wide Band Operation, Vertically and Horizontally Polarized, Extremely Rugged for Extreme EnvironmentAntenna is supplied together with the bracket, which is possible to set easily in both directions. The Parabolic Dish Antenna systems offered by Wireless are constructed of an aluminumalloy dish with powder coat paint finish for excellent mechanical. The solid dish antenna has been specifically designed for operation on 4G LTE MMO networks. Parabolic Dish Antenna can be made larger than a wire mesh reflector without leaking signal throughgaps. Thus, it makes a good choice for Point-to-Point applications.
| Electrical | |
| Frequency Range | 1710-2690/3300-3800MHz |
| F/B Ratio | ≥25dB |
| Gain | 20/22dBi |
| V.S.W.R | ≤2.0 |
| Isolation | 25db |
| Horizontal Beam width | 15±5°/12±5° |
| Vertical Beam width | 15±5°/12±5° |
| Polarization | ±45° |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |
| Connector | 2xN Female |
| Antenna Radome Material | Aluminium alloy |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Ø50~Ø70mm |
| Mechanical | |
| Dimensions | Φ600mm |
| Weight | 5.5KG |
| Operating Temperature | -40℃ to+70℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
The dish is coated in a light gray UV-inhibited polymer for durability and aesthetics. The small diameter of the dish helps minimize wind loading.
The solid dish antenna has been specifically designed for operation on 4G LTE MIMO networks.
The dish is coated in a light gray UV-inhibited polymer for durability and aesthetics，Rugged and Weatherproof.
