Surge arresters are the primary protection against atmospheric and switching over voltages.
Bi-directional protection (n-female / n-female connectors) - bulkhead / panel / outdoor mountable high quality construction.
Frequency Range up to 6 GHz covers 2G 3G 4G LTE cell phone signal boosters, 2.4GHz and 5.8GHz LAN WiFi,WiMAX, FM, AM, VHF and UHF broadcast network surge suppression.
Designed and manufactured the lightning surge protector body material with high quality nickel plated brass to provide superior performance and longevity.
| Electrical | |
| Frequency Range | 0-6000MHz |
| VSWR | ≤1.2 |
| Maximum Input Power | 200W |
| Discharge inception voltage | DC230 |
| Impedance | 50Ω |
| Insert Loss | ≤0.2 |
| Input Connector | N-K/ N-K |
| Dimensions | 65×31×25mm |
| Weight | 130g |

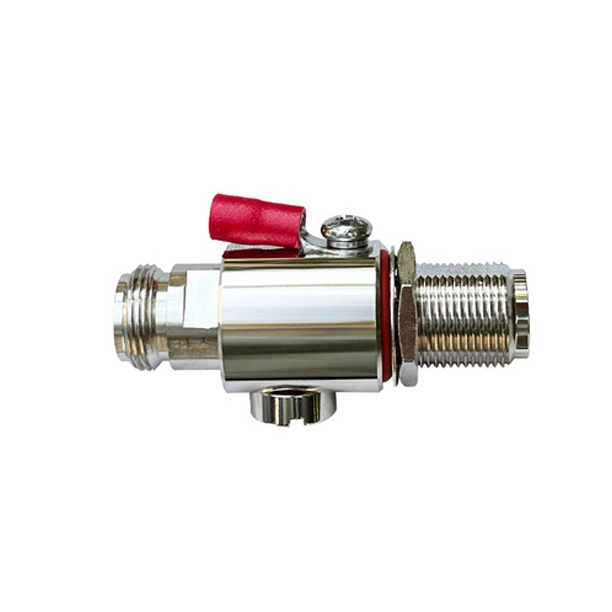

This is a very high-performance gas discharge tube suppressor featuring wide-band operation up to 6 GHz.
The unit features a bulkhead n-female connector with a rubber "o"-ring seal for mounting through an enclosure wall or using the optional stainless steel mounting bracket.
Due to its superior RF performance this unit is ideal for IEEE 802.11a and other 5.2-5.8 GHz ISM and UNII applications, as well as 3.5 GHz WLL applications.
